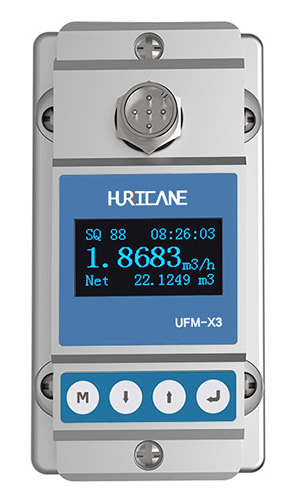

Ultrasonic Flow Meter UFM-X3

flow meter ufm-x3

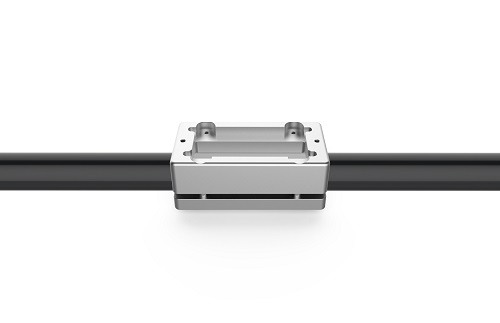

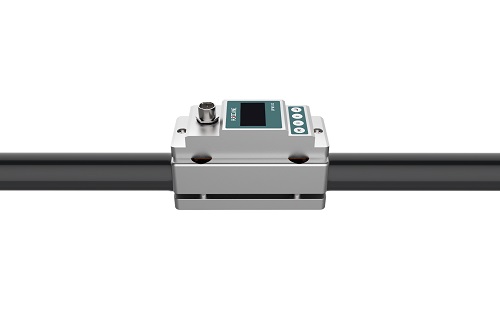

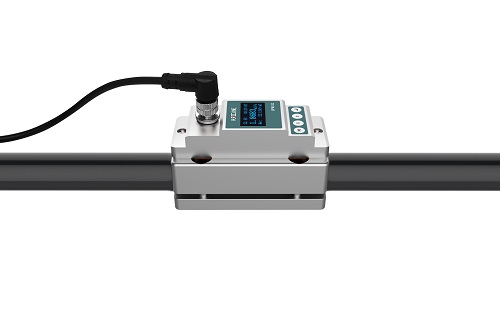

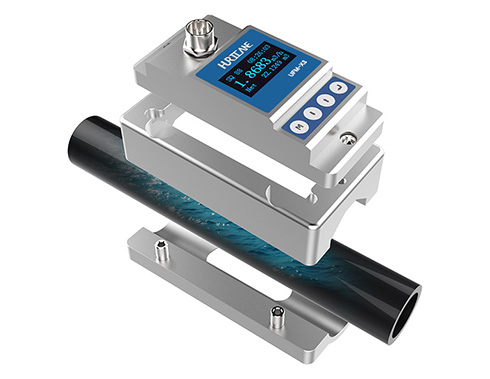

Clamp On Type Flow Meter

With the amount of shortage of water resources, water is no longer always be free. Irrigation, water supply, industrial water, power plant, orchards etc will consistently need flow meter to measure water resource and charge for water consumption.
Hurricane Company devotes to make the liquid resource in effective use, provide energy saving and emission reduction solution in measurement, reduce liquid resource loss.
To measure accurately and promote the liquid resource use effectively.

flow meter ufm-x3_1

Ultrasonic Flow Meter UFM-X3 Performance Specification
– Accuracy: ±2%
– Repeatability: 0.8%
– Protection rate: Ip54
– Pipe size: Φ25~Φ40(standard SCH40)
– Piper Material : PVC, Carbon Steel, Stainless Steel
– Flow range: 0.1 ~ 5m/s (0.3ft/s ~ 16 ft/s)
– Medium temperature: 32℉~+122℉(0℃ ~ +50℃)
– Fluid : Water
– Output: RS485
– Case Material : Aluminum alloy
– Power supply: 24VDC, maximum 1A
Weight : 1.5KG
– Cable Length : 1.2m (Can be customized)

Ultrasonic Flow Meter UFM-X3 measures the velocity of a fluid with ultrasound to calculate volume flow.
Using ultrasonic transducers, the flow meter can measure the average velocity along the path of an emitted beam of ultrasound, by averaging the difference in measured transit time between the pulses of ultrasound propagating into and against the direction of the flow or by measuring the frequency shift from the Doppler effect.
whit affected by the acoustic properties of the fluid and can be impacted by temperature, density, viscosity and suspended particulates depending on the exact flow meter.
They vary greatly in purchase price but are often inexpensive to use and maintain because they do not use moving parts, unlike mechanical flow meters.
